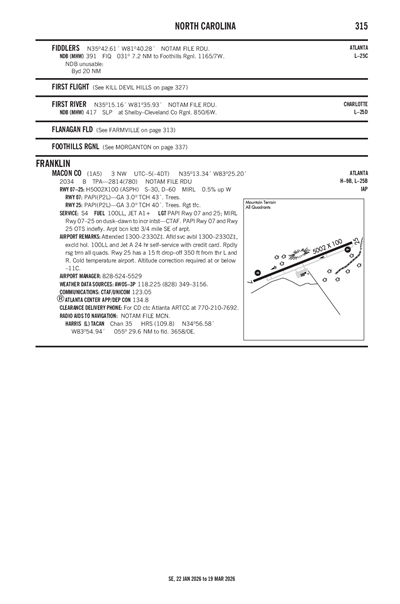

MACON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1A5
Local 1A5
MACON COUNTY
PublicPUB

3 miles NW of FRANKLIN, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 13' 20"N 83° 25' 12"W
Elevation
2034' MSL
Pattern Alt
2814' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
K1A5 VFR
10:55 PM EST
Clear
10sm
44°F
42°F
30.35"Hg
Calm
AO2 T00650057
METAR K1A5 040355Z AUTO 00000KT 10SM CLR 07/06 A3035 RMK AO2 T00650057
+ Add Your Business

1A5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.225
(828) 349-3156

Common

CTAF 123.05
PAPI RWY 07 & 25; MIRL RWY 07/25 ON DUSK - DAWN. TO INCR INTST - CTAF.
UNICOM 123.05

Center

ATLANTA CENTER 134.8
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC (ZTL) ON FREQS 134.8/379.95 (MOUNT OGLETHORPE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAVL (45nm)
Tue, 3/3 6:39 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 11:00 PM EST
Broken 20,000'
6sm
170° 5kts
VFR
11:00 PM EST - 3:00 AM EST
Scattered 20,000'
6sm
VRB° 2kts
IFR
3:00 AM EST - 8:00 AM EST
Mist
Broken 600'
2sm
VRB° 3kts
LIFR
Temporary 4:00 AM EST - 8:00 AM EST
Fog
Overcast 200'
0.5sm
Calm
VFR
8:00 AM EST - 11:00 AM EST
Broken 20,000'
6sm
170° 5kts
VFR
11:00 AM EST - 7:00 PM EST
Scattered 4,000'
6sm
210° 5kts
TAF KAVL 032339Z 0400/0424 17005KT P6SM BKN200
   FM040400 VRB02KT P6SM SCT200
   FM040800 VRB03KT 2SM BR BKN006
   TEMPO 0409/0413 1/2SM FG OVC002
   FM041300 17005KT P6SM BKN200
   FM041600 21005KT P6SM SCT040
1A5
EffectiveExpiresCategoryNOTAM
Domestic
1/3/26
1207Z
4/3/26
0500Z
!RDU 01/018 1A5 OBST TOWER LGT (ASR 1000280) 352610.80N0832607.90W (12.9NM N 1A5) 2200.1FT (250.0FT AGL) U/S 2601031207-2604030500
No
0800-1830
AFLD SVC AVBL 0800-1830 EXCLD HOL.
MACON COUNTY AIRPORT AUTHORITY
1241 AIRPORT ROAD
FRANKLIN, NC 28734
Phone: 828-524-7121
SABRINA CRONE
1241 AIRPORT ROAD
FRANKLIN, NC 28734
Phone: 828-524-5529
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
PAPI RWY 07 & 25; MIRL RWY 07/25 ON DUSK - DAWN. TO INCR INTST - CTAF.
N/A
ARPT BCN LCTD 3/4 MILE SE OF ARPT.
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 07/25

5002 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
60,000lbs
--
--
  Runway 07 Runway 25
True Heading 69°249°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 13' 11"N 35° 13' 29"N
Longitude 83° 25' 40"W 83° 24' 44"W
Elevation 2,034' 2,010'
Threshold Crossing Height 43 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-11COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -11C.
A110-2RPDLY RSG TRRN ALL QUADS.
A110-4RWY 25 HAS A 15 FT DROP-OFF 350 FT FM THR L & R.
A17-M1AFLD SVC AVBL 0800-1830 EXCLD HOL.
A43-07PAPI RWY 7 OTS INDEFLY.
A43-25PAPI RWY 25 OTS INDEFLY.
A58-076 FT HILL 0-200 FT FM END OF THLD OFFSET 100 FT LEFT OF CNTRLN AND 29 FT TREES 56 FT FM END OF THLD OFFSET 227 FT LEFT.
A58-25RWY 25 8 FT FENCE 159 FT FM END OF THR OFFSET 134 FT RIGHT OF CNTRLN AND 10 FT BRUSH 0 TO 200 FT FM THR OFFSET 168 FT LEFT OF CNTRLN.
A70-100LL100LL AND JET A 24 HR SELF-SERVICE WITH CREDIT CARD.
A80ARPT BCN LCTD 3/4 MILE SE OF ARPT.
A81-APTPAPI RWY 07 & 25; MIRL RWY 07/25 ON DUSK - DAWN. TO INCR INTST - CTAF.
MACON COUNTY (IATA: 1A5) is a public airport located in FRANKLIN, NC, US.
