iFlightPlanner



...

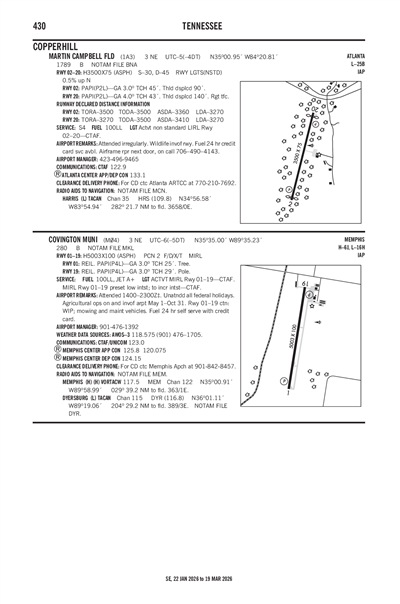

MARTIN CAMPBELL FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1A3
Local 1A3
MARTIN CAMPBELL FLD
PublicPUB

3 miles NE of COPPERHILL, TN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 00' 57"N 84° 20' 49"W
Elevation
1789' MSL
Pattern Alt
2789' MSL
Mag Variation
6°W
Declination
5°W
Fuel
100LL
FSS
NASHVILLE (BNA)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KDZJ (20nm) VFR
8:55 PM EST
Clear
10sm
52°F
46°F
30.32"Hg
100° 5kts
AO2 T01100075
METAR KDZJ 040155Z AUTO 10005KT 10SM CLR 11/08 A3032 RMK AO2 T01100075
+ Add Your Business

1A3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT NON STANDARD LIRL RWY 02/20 - CTAF.

Center

ATLANTA CENTER 133.1
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 133.1/342.425 (MOUNT OGLETHORPE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCHA (42nm)
Tue, 3/3 7:12 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 9:00 PM EST
Scattered 25,000'
Few 4,000'
6sm
170° 6kts
VFR
9:00 PM EST - 3:00 AM EST
Overcast 25,000'
Broken 5,000'
6sm
190° 5kts
MVFR
3:00 AM EST - 10:00 AM EST
Overcast 2,500'
Broken 1,700'
6sm
180° 3kts
VFR
10:00 AM EST - 7:00 PM EST
Broken 3,500'
Scattered 2,500'
6sm
180° 7kts
TAF KCHA 040012Z 0400/0424 17006KT P6SM FEW040 SCT250
   FM040200 19005KT P6SM BKN050 OVC250
   FM040800 18003KT P6SM BKN017 OVC025
   FM041500 18007KT P6SM SCT025 BKN035
1A3
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1415Z
4/9/26
1415Z
!BNA 02/508 1A3 OBST TOWER LGT (ASN 2020-ASO-8280-OE) 350914N0841840W (8.5NM NNE 1A3) 1959FT (290FT AGL) U/S 2602231415-2604091415
No
IRREG
POLK COUNTY
COUNTY COURTHOUSE
BENTON, TN 37307
Phone: 423-338-4527
ALAN FROSCH
971 AIRPORT ROAD
COPPERHILL, TN 37317
Phone: 423-496-9465
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT NON STANDARD LIRL RWY 02/20 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction

Runway 02/20

3500 ft. x 75 ft.
ASPH
Good
NONE
NSTD

30,000lbs
45,000lbs
--
--
  Runway 02 Runway 20
True Heading 14°194°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 00' 40"N 35° 01' 14"N
Longitude 84° 20' 54"W 84° 20' 44"W
Elevation 1,772' 1,789'
Threshold Crossing Height 45 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1WILDLIFE INVOF RWY.
A110-3FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A52-208400 FT MTN RIDGES IN APCH; 5000 FT MTN RIDGE ALONG E SIDE OF RWY.
A57-02APCH RATIO 17:1 TO DTHR.
A57-20APCH RATIO 19:1 TO DTHR.
A70-100LLFUEL 24 HR CREDIT CARD SVC AVBL.
A71AIRFRAME RPR NEXT DOOR, ON CALL 706-490-4143
A81-APTACTVT NON STANDARD LIRL RWY 02/20 - CTAF.
MARTIN CAMPBELL FLD (IATA: 1A3) is a public airport located in COPPERHILL, TN, US.
