CHEHALEM AIRPARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

17S
Local 17S
CHEHALEM AIRPARK
PublicPUB

4 miles NW of NEWBERG, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 19' 25"N 123° 03' 15"W
Elevation
190' MSL
Pattern Alt
1190' MSL
Mag Variation
15°E
Declination
19°E
Fuel
JET A, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KMMV (8nm) VFR
6:53 PM PST
Scattered 11,000'
Few 3,800'
10sm
53°F
44°F
30.05"Hg
240° 5kts
AO2 SLP175 T01170067 55003
METAR KMMV 040253Z AUTO 24005KT 10SM FEW038 SCT110 12/07 A3005 RMK AO2 SLP175 T01170067 55003
+ Add Your Business

17S FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

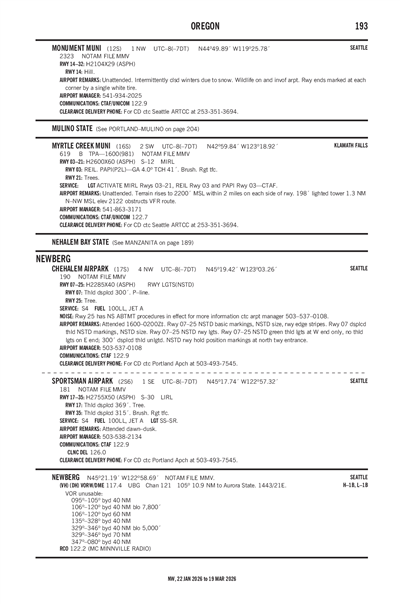

FAA A/FD Pages

Terminal Area Forecast

KUAO (13nm)
Tue, 3/3 3:28 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 9:00 PM PST
Overcast 3,500'
Scattered 2,500'
6sm
200° 7kts
MVFR
9:00 PM PST - 12:00 AM PST
Light Rain
Overcast 4,000'
Broken 2,900'
6sm
190° 7kts
MVFR
12:00 AM PST - 4:00 PM PST
Light Rain
Overcast 2,500'
6sm
190° 11kts
TAF KUAO 032328Z 0400/0424 20007KT P6SM SCT025 OVC035
   FM040500 19007KT P6SM -RA BKN029 OVC040
   FM040800 19011KT P6SM -RA OVC025
17S
No NOTAM Available
No
0800-1800
NANCY STURDEVANT
17600 NE AVIATION WAY
NEWBERG, OR 97132
Phone: 503-538-1743
NANCY STURDEVANT
17770 NE AVIATION WAY
NEWBERG, OR 97132
Phone: 503-537-0108
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
No
Major
Major
None
None
Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

2285 ft. x 40 ft.
ASPH
Good
NONE
NSTD

--
--
--
--
  Runway 07 Runway 25
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY 25 HAS NOISE ABATEMENT PROCEDURES IN EFFECT FOR MORE INFORMATION CTC AMGR AT 503-537-0108.
A110-3NON STANDARD RUNWAY HOLD POSITION MARKINGS AT NORTH TAXIWAY ENTRANCE
A110-4FOR CD CTC PORTLAND APCH AT 503-493-7545.
A40-07/25NSTD GREEN THLD LIGHTS AT WEST END ONLY; NO THLD LIGHTS ON EAST END; 300 FT DSPLCD THLD UNLIGHTED
A42-07_MARKRWY 7/25 NSTD BASIC MARKINGS, NSTD SIZE, RWY EDGE STRIPES
A51-07NSTD MARKINGS, NSTD SIZE.
A52-074' DITCH BETWEEN ROAD & RWY END.
A57-07DTHR 6:1 TREES AND BLDGS L AND R OF CNTRLN 220' FROM THR.
A58-07RWY 7 +13 FT ROAD 20 FR FRM RWY END, +18 FT BLDG 85 FT FRM RWY END & 65 FT L, 20 FT TREES/BRUSH 180 FT FRM RWY END, 53 FT TREES 60 FT FRM RWY END & 80 FEET L OF CENTERLINE
CHEHALEM AIRPARK (IATA: 17S) is a public airport located in NEWBERG, OR, US.
