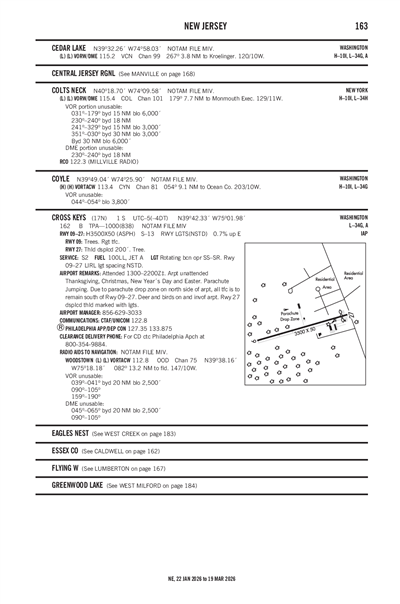

CROSS KEYS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

17N
Local 17N
CROSS KEYS
PublicPUB

1 miles S of CROSS KEYS, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 42' 20"N 75° 01' 59"W
Elevation
162' MSL
Pattern Alt
1000' MSL
Mag Variation
12°W
Declination
10°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KPHL (14nm) IFR
10:54 PM EST
Mist
Overcast 600'
5sm
40°F
38°F
30.25"Hg
240° 10kts
AO2 SLP245 T00440033 $
METAR KPHL 040354Z 24010KT 5SM BR OVC006 04/03 A3025 RMK AO2 SLP245 T00440033 $
+ Add Your Business

17N FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

Approach

PHILADELPHIA APPROACH 127.35
PHILADELPHIA APPROACH 133.875

Departure

PHILADELPHIA DEPARTURE 127.35
PHILADELPHIA DEPARTURE 133.875

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPHL (14nm)
Tue, 3/3 9:44 PM EST
Tue, 3/3 10:00 PM EST - Thu, 3/5 1:00 AM EST
IFR
10:00 PM EST - 11:00 PM EST
Light Rain and Mist
Overcast 500'
3sm
230° 8kts
IFR
11:00 PM EST - 5:00 AM EST
Light Drizzle and Mist
Overcast 500'
3sm
230° 8kts
LIFR
5:00 AM EST - 11:00 AM EST
Mist
Overcast 300'
2sm
VRB° 3kts
MVFR
11:00 AM EST - 2:00 PM EST
Mist
Broken 1,500'
6sm
050° 4kts
VFR
2:00 PM EST - 7:00 PM EST
Broken 4,000'
6sm
060° 3kts
MVFR
7:00 PM EST - 1:00 AM EST
Light Rain and Mist
Overcast 1,000'
3sm
080° 2kts
TAF KPHL 040244Z 0403/0506 23008KT 3SM -RA BR OVC005
   FM040400 23008KT 3SM -DZ BR OVC005
   FM041000 VRB03KT 2SM BR OVC003
   FM041600 05004KT 6SM BR BKN015
   FM041900 06003KT P6SM BKN040
   FM050000 08002KT 3SM -RA BR OVC010
17N
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
1609Z
2/25/26
1700Z
Runway!MIV 02/354 17N RWY 09/27 CLSD 2602241609-2602251700
2/23/26
2123Z
6/23/26
2123Z
!MIV 02/346 17N OBST TOWER LGT (ASR 1055894) 394459.00N0750125.00W (2.7NM NE 17N) 344.8FT (230.0FT AGL) U/S 2602232123-2606232123
2/22/26
2255Z
4/8/26
2255Z
!MIV 02/283 17N OBST TOWER LGT (ASR 1044774) 394057.00N0750142.00W (1.4NM S 17N) 400.3FT (255.9FT AGL) U/S 2602222255-2604082255
2/9/26
1028Z
5/10/26
0500Z
!MIV 02/139 17N OBST TOWER LGT (ASR 1215340) 394203.10N0745853.20W (2.4NM E 17N) 286.1FT (160.1FT AGL) U/S 2602091028-2605100500
11/11/25
1517Z
11/11/26
1515Z
Runway!MIV 11/066 17N RWY 09/27 CLSD TO TGL 2511111517-2611111515
No
0800-1700
CROSS KEYS AIRPORT LLC
1531 N. TUCKAHOE ROAD
WILLIAMSTOWN, NJ 08094
Phone: 856-629-3033
HARRY STRAHLENDORF
1531 N. TUCKAHOE ROAD
WILLIAMSTOWN, NJ 08094
Phone: 856-629-3033
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 09/27

3500 ft. x 50 ft.
ASPH
Good
NONE
NSTD

13,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 74°254°
Traffic Pattern Right Left
Markings NPI BSC
Markings Condition FAIR FAIR
Latitude 39° 42' 15"N 39° 42' 25"N
Longitude 75° 02' 20"W 75° 01' 37"W
Elevation 137' 161'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1DUE TO PARACHUTE DROP ZONE ON N SIDE OF ARPT, ALL TFC TO REMAIN S OF RWY 09/27.
A110-4DEER & BIRDS ON & INVOF ARPT.
A110-7ARPT UNATTND THANKSGIVING, CHRISTMAS, NEW YEAR'S DAY AND EASTER.
A110-8FOR CD CTC PHILADELPHIA APCH AT 800-354-9884.
A40-09/27LIRL LGT SPACING NSTD.
A51-27DSPLCD THLD MARKED WITH LGTS.
A52-27ROAD, FENCE, BLDGS, & TREES NEAR APCH END.
A56-09TREES ARE 125' R & L OF CNTRL EXTNDD.
A58-09+20 FT TREES 50 FT RT & LFT OF EXTD CTLN 0-200 FT FM APP END. +60 FT TREES 200 FT RT & LFT OF EXTD CTLN AT APP END.
CROSS KEYS (IATA: 17N) is a public airport located in CROSS KEYS, NJ, US.
