iFlightPlanner



...

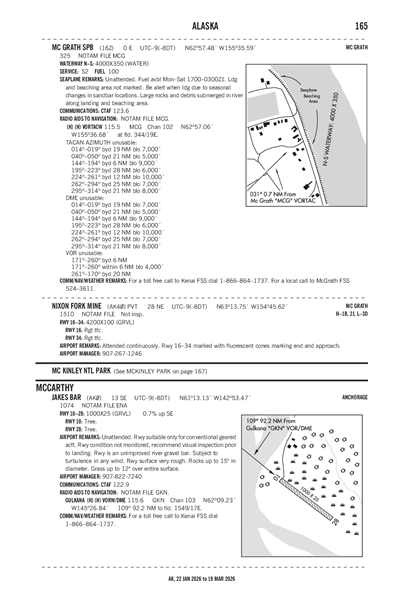

MC GRATH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

16Z
Local 16Z
MC GRATH
PublicPUB

0 miles E of MC GRATH, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
62° 57' 29"N 155° 35' 35"W
Elevation
325' MSL
Pattern Alt
1325' MSL
Mag Variation
13°E
Declination
23°E
Fuel
100
FSS
MCGRATH (MCG)
Sectional
MC GRATH
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAMC VFR
7:53 PM AKST
Clear
10sm
-3°F
-15°F
29.74"Hg
030° 6kts
AO2 SLP086 T11941261 TSNO
METAR PAMC 040453Z AUTO 03006KT 10SM CLR M19/M26 A2974 RMK AO2 SLP086 T11941261 TSNO
+ Add Your Business

16Z FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.6

FAA A/FD Pages

Terminal Area Forecast

PAMC
Tue, 3/3 2:20 PM AKST
Tue, 3/3 3:00 PM AKST - Wed, 3/4 3:00 PM AKST
VFR
3:00 PM AKST - 3:00 PM AKST
Sky Clear
6sm
020° 9kts
TAF PAMC 032320Z 0400/0424 02009KT P6SM SKC
16Z
No NOTAM Available
No
UNATNDD
PUBLIC DOMAIN

N/A
MCGRATH FSS (MCG)
Toll Free: LD524-3611
MCG
--
--
N/A
No
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Cargo Handling

Runway N/S

4000 ft. x 350 ft.
WATER
Excellent
NONE


--
--
--
--
  Runway N Runway S
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1OPRG AREA IN KUSKOKWIM RIVER.
A110-2LANDING AND BEACHING AREA NOT MARKED. BE ALERT WHEN LANDING DUE TO SEASONAL CHANGES IN SANDBAR LOCATIONS.
A110-3WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-4LARGE ROCKS AND DEBRIS SUBMERGED IN RIVER ALONG LANDING AND BEACHING AREA.
A70-100FUEL AVBL 0800-1800 MON-SAT.
E111ESTABD PRIOR TO 1959.
MC GRATH (IATA: 16Z) is a public seaplane base located in MC GRATH, AK, US.
