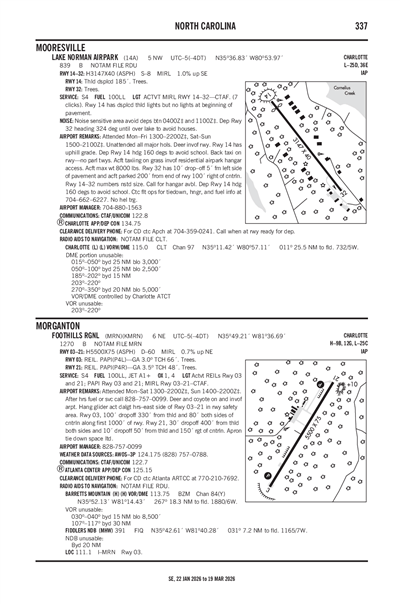

LAKE NORMAN AIRPARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

14A
Local 14A
LAKE NORMAN AIRPARK
PublicPUB

5 miles NW of MOORESVILLE, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 36' 50"N 80° 53' 58"W
Elevation
839' MSL
Pattern Alt
1839' MSL
Mag Variation
8°W
Declination
7°W
Fuel
100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KSVH (9nm) MVFR
11:35 PM EST
Mist
Clear
4sm
45°F
45°F
30.32"Hg
Calm
AO2 T00730072
METAR KSVH 040435Z AUTO 00000KT 4SM BR CLR 07/07 A3032 RMK AO2 T00730072
+ Add Your Business

14A FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RWY 14/32 - CTAF (7 CLICKS).
UNICOM 122.8

Approach

CHARLOTTE APPROACH 134.75

Departure

CHARLOTTE DEPARTURE 134.75

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCLT (24nm)
Tue, 3/3 9:03 PM EST
Tue, 3/3 9:00 PM EST - Thu, 3/5 1:00 AM EST
VFR
9:00 PM EST - 11:00 PM EST
Scattered 25,000'
6sm
210° 3kts
MVFR
11:00 PM EST - 1:00 AM EST
Broken 2,300'
6sm
220° 3kts
MVFR
1:00 AM EST - 6:00 AM EST
Broken 1,900'
6sm
210° 3kts
VFR
6:00 AM EST - 9:00 AM EST
Mist
Broken 12,000'
Scattered 2,000'
6sm
230° 3kts
VFR
9:00 AM EST - 12:00 AM EST
Scattered 4,000'
6sm
220° 6kts
MVFR
12:00 AM EST - 1:00 AM EST
Broken 2,900'
6sm
200° 4kts
TAF KCLT 040203Z 0402/0506 21003KT P6SM SCT250
   FM040400 22003KT P6SM BKN023
   FM040600 21003KT P6SM BKN019
   FM041100 23003KT 6SM BR SCT020 BKN120
   FM041400 22006KT P6SM SCT040
   FM050500 20004KT P6SM BKN029
14A
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
2325Z
5/24/26
0500Z
!RDU 02/401 14A OBST TOWER LGT (ASR 1052554) 353615.30N0805935.80W (4.6NM W 14A) 1113.8FT (250.0FT AGL) U/S 2602232325-2605240500
2/9/26
0340Z
3/25/26
2139Z
!RDU 02/192 14A OBST TOWER LGT (ASR 1004496) 353157.00N0804746.00W (6.9NM SE 14A) 2349.7FT (1539.4FT AGL) U/S 2602090340-2603252139
1/27/26
1722Z
2/11/27
2359Z
!RDU 01/480 14A AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 353650N0805831W (3.4NM SW 14A) SFC-400FT AGL 2601271722-2702112359
No
MON - FRI 0800-1700
SAT - SUN 1000-1600
ARPT UNATNDD ALL MAJ HOLS.
LAKE NORMAN AIRPARK OWNERS ASSOC
409 NORMANDY ROAD
MOORESVILLE, NC 28117
Phone: 704-880-1563
DEBBY DENNIS
341 NORMANDY ROAD
MOORESVILLE, NC 28117
Phone: 704-880-1563
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
ACTVT MIRL RWY 14/32 - CTAF (7 CLICKS).
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 14/32

3147 ft. x 40 ft.
ASPH
Good
NONE
MED

8,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 137°317°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 35° 37' 01"N 35° 36' 39"N
Longitude 80° 54' 11"W 80° 53' 45"W
Elevation 808' 839'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1ACFT TAXIING ON GRASS INVOF RESIDENTIAL AIRPARK HNGR ACCESS.
A110-10FOR CD CTC APCH AT 704-359-0241. CALL WHEN AT RWY READY FOR DEP.
A110-11CTC RACE CITY FLT OPS FOR TIEDOWN, HNGR, AND FUEL INFO AT 704-662-6227.
A110-13ACFT MAX WT 8000 LBS.
A110-15BACK TAXI ON RWY - NO PARL TWYS.
A110-16NO HEL TRG.
A110-17DEER INVOF RWY.
A110-6RWY 14 HAS UPHILL GRADE.
A110-7DEP RWY 14 HDG 160 DEGS TO AVOID SCHOOL.
A110-8NOISE SENSITIVE AREA AVOID DEPS BTN 2300 AND 0600. DEP RWY 32 HDG 324 DEG UNTIL OVER LAKE TO AVOID HOUSES.
A110-9RWY 32 HAS 10 FT DROP-OFF 5 FT FM LEFT SIDE OF PAVEMENT AND ACFT PARKED 200 FT FM END OF RWY 100 FT RIGHT OF CNTRLN.
A17-M1ARPT UNATNDD ALL MAJ HOLS.
A40-14/32RWY 14 HAS DSPLCD THR LIGHTS BUT NO LIGHTS AT BEGINNING OF PAVEMENT.
A42-14_MARKRWY 14/32 NUMBERS NSTD SIZE.
A57-14APCH RATIO 9:1 AT DSPLCD THR.
A58-14+10 FT TERRAIN 100 FT FM THR, 50 FT LEFT OF CNTRLN, AND 20 FT SUPPL LDI (TET) 100 FT FM THR, 100 FT LEFT OF CNTRLN.
A58-32+48 TREES LINE 0-200 FT FM THR OFFSET 116 FT RIGHT.
A81-APTACTVT MIRL RWY 14/32 - CTAF (7 CLICKS).
A84UNLGTD SEGMENTED CRC.
E111PRVDD VFR; APCH SLOPE SFCS CLEAR FOR 20:1; LTG FOR APCH END RWY 14 CHGD TO SHOW GREEN ON APCH SIDE AND RED ON RWY SIDE; RMK ADDED TO A/FD RE RWY 32 APCH/LDG & LGT; AND HGRS OBSTRUCTION LGTD IF NIGHT APCHS/LDG TO RWY 32 AUTH.
LAKE NORMAN AIRPARK (IATA: 14A) is a public airport located in MOORESVILLE, NC, US.
