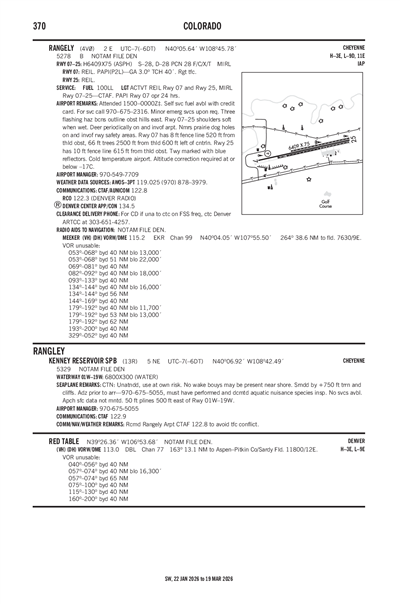

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

13R
KENNEY RESERVOIR
PublicPUB

5 miles NE of RANGLEY, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 06' 55"N 108° 42' 29"W
5329' MSL
6329' MSL
None Listed
DENVER (DEN)
CHEYENNE
DENVER (ZDV)
4/17/25-5/15/25
K4V0 (3nm) VFR
12:55 AM MDT
Broken 11,000'
10sm
58°F
47°F
29.94"Hg
060° 3kts
AO2 T01430086 402960120 PWINO
K4V0 030655Z AUTO 06003KT 10SM BKN110 14/09 A2994 RMK AO2 T01430086 402960120 PWINO
+ Add Your Business

13R FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KVEL (42nm)
Mon, 6/2 11:40 PM MDT
Tue, 6/3 12:00 AM MDT - Wed, 6/4 12:00 AM MDT
VFR
12:00 AM MDT - 6:00 AM MDT
Scattered 11,000'
Few 9,000'
6sm
090° 8kts
VFR
6:00 AM MDT - 1:00 PM MDT
Few 11,000'
Few 8,000'
6sm
VRB° 4kts
VFR
1:00 PM MDT - 9:00 PM MDT
Sky Clear
6sm
260° 12kts
Gusts 24kts
VFR
9:00 PM MDT - 12:00 AM MDT
Sky Clear
6sm
330° 8kts
KVEL 030540Z 0306/0406 09008KT P6SM FEW090 SCT110
   FM031200 VRB04KT P6SM FEW080 FEW110
   FM031900 26012G24KT P6SM SKC
   FM040300 33008KT P6SM SKC
13R
Domestic
5/17/251152Z !DEN 05/499 13R OBST TOWER LGT (ASR 1059377) 402317.00N1082306.00W (22.0NM NE 13R) 7257.2FT (310.0FT AGL) U/S 2505171152-2506160600
No
Unknown
RIO BLANCO WATER CONSERVANCE DIS.
2252 E MAIN ST
RANGELY, CO 81648
Phone: 970-675-5055
RIO BLANCO WATER CONSERVANCE DIS.
2252 E MAIN ST
RANGELY, CO 81648
Phone: 970-675-5055
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
--
N/A
No
No
No
None
No
None
None
None
None
None

Runway 01W/19W

6800 ft. x 300 ft.

WATER
NONE


--
--
--
--
  Runway 01W Runway 19W
True Heading 10°190°
Traffic Pattern
Markings NONE NONE
Markings Condition
Latitude 40° 06' 30"N 40° 07' 36"N
Longitude 108° 42' 44"W 108° 42' 29"W
Elevation 5,329' 5,329'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SRNDD BY +750 FT TRRN & CLIFFS.
A110-2RCMD RANGELY ARPT CTAF 122.8 TO AVOID TFC CONFLICT.
A110-3ADZ PRIOR TO ARR - 970-675-5055; MUST HAVE PERFORMED & DCMTD AQUATIC NUISANCE SPECIES INSP.
A110-5NO SVC AVBL.
A110-6CTN: UNATNDD; USE AT OWN RISK; NO WAKE BUOYS MAY BE PRESENT NEAR SHORE.
A110-8APCH SFC DATA NOT MNTD.
A110-950 FT PLINES 500 FT EAST OF RWY 01W/19W.
KENNEY RESERVOIR (IATA: 13R) is a public airport located in RANGLEY, CO.
