No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

12V
ONA AIRPARK
PublicPUB

4 miles W of MILTON, WV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 26' 27"N 82° 12' 03"W
572' MSL
1572' MSL
06W
100LL
ELKINS (EKN)
CINCINNATI
INDIANAPOLIS (ZID)
10/31/24-11/28/24
KHTS (17nm) VFR
6:51 AM EST
Clear
10sm
45°F
36°F
30.27"Hg
080° 4kts
AO2 SLP252 T00720022 10089 20056 51012
KHTS 091151Z 08004KT 10SM CLR 07/02 A3027 RMK AO2 SLP252 T00720022 10089 20056 51012
Add Your Business

12V FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

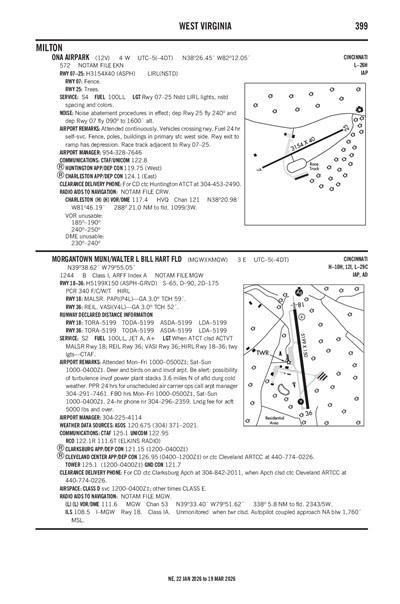

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHTS (17nm)
Sat, 11/9 6:35 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Scattered 25,000'
6sm
030° 5kts
VFR
9:00 AM EST - 7:00 AM EST
Scattered 25,000'
6sm
070° 5kts
KHTS 091135Z 0912/1012 03005KT P6SM SCT250
   FM091400 07005KT P6SM SCT250
12V
Domestic
10/31/240055Z !EKN 10/228 12V OBST TOWER LGT (ASR 1202471) 383100.60N0815521.60W (13.9NM ENE 12V) 1165.7FT (302.8FT AGL) U/S 2410310055-2502280055
10/17/241450Z !EKN 10/124 12V OBST TOWER LGT (ASR 1234025) 383021.10N0821232.30W (3.9NM N 12V) 2130.9FT (1159.1FT AGL) U/S 2410171450-2501312359
10/17/241212Z !EKN 10/123 12V OBST TOWER LGT (ASR 1329112) 382439.02N0815753.02W (11.6NM E 12V) 1115FT (199FT AGL) U/S 2410171212-2501172359
10/3/241400Z !EKN 10/020 12V OBST TOWER LGT (ASR 1264486) 382028.00N0820356.30W (8.7NM SE 12V) 1198.8FT (300.9FT AGL) U/S 2410031400-2501311400
9/27/241640Z !EKN 09/195 12V OBST TOWER LGT (ASR 1045615) 382941.30N0821202.50W (3.2NM NE 12V) 2000.0FT (1059.7FT AGL) U/S 2409271640-2501312359
9/20/241510Z !EKN 09/134 12V OBST TOWER LGT (ASR 1284481) 382823.30N0815336.30W (14.6NM E 12V) 1246.7FT (308.1FT AGL) U/S 2409201510-2501181510
No
ALL
ONA LAND MANAGEMENT SERVICES, LLC
#1 FAIR SKIES DR
ONA, WV 25545-1500
Phone: (954) 328-7646
BILL & LYNN BAUER
# 1 FAIR SKIES DR.
ONA, WV 25545-1500
Phone: (954) 328-7646
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
Sunset to Sunrise
--
N/A
Yes
No
No
Hanger, Tie-Down
No
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 07/25

3154 ft. x 40 ft.
ASPH
Fair
NONE
NSTD

--
--
--
--
  Runway 07 Runway 25
True Heading 59°239°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 38° 26' 19"N 38° 26' 35"N
Longitude 82° 12' 20"W 82° 11' 46"W
Elevation 567' 569'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10VEHICLES CROSSING RWY.
A110-12FOR CD CTC HUNTINGTON ATCT AT 304-453-2490.
A110-3NOISE ABATEMENT PROCEDURES IN EFFECT; DEP RWY 25 FLY 240 DEGS & DEP RWY 07 FLY 090 DEGS TO 1600 FT ALTITUDE.
A110-4RWY EXIT TO RAMP HAS DEPRESSION.
A110-6(A52-09) +350 HILL 1300 FT DSTC.
A110-7FENCE, POLES, BLDGS, IN PRIMARY SFC, WEST SIDE.
A110-8RACE TRACK ADJACENT TO RWY 07/25.
ONA AIRPARK (IATA: 12V) is a public airport located in MILTON, WV.
