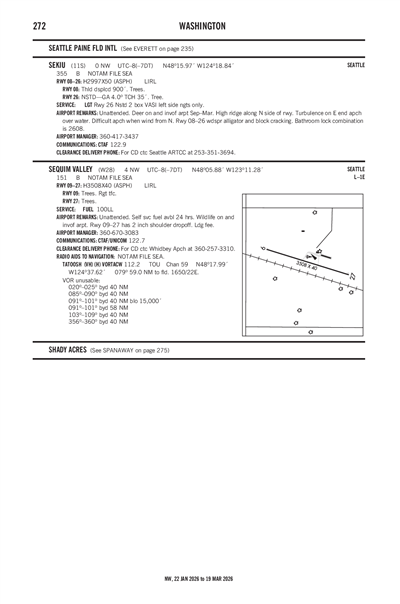

SEKIU - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

11S
Local 11S
SEKIU
PublicPUB

0 miles NW of SEKIU, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 15' 58"N 124° 18' 50"W
Elevation
355' MSL
Pattern Alt
1355' MSL
Mag Variation
16°E
Declination
21°E
Fuel
None Listed
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KUIL (22nm) IFR
7:53 PM PST
Mist
Overcast 700'
1.75sm
49°F
48°F
29.91"Hg
170° 8kts
Gusts 20kts
AO2 SLP128 T00940089 PWINO
METAR KUIL 040353Z AUTO 17008G20KT 130V200 1 3/4SM BR OVC007 09/09 A2991 RMK AO2 SLP128 T00940089 PWINO
+ Add Your Business

11S FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KCLM (34nm)
Tue, 3/3 3:20 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 7:00 PM PST
Broken 6,000'
6sm
030° 5kts
MVFR
7:00 PM PST - 1:00 AM PST
Showers in vicinity
Overcast 3,000'
6sm
240° 5kts
MVFR
1:00 AM PST - 7:00 AM PST
Light Rain
Overcast 1,500'
5sm
230° 4kts
MVFR
7:00 AM PST - 1:00 PM PST
Overcast 1,500'
6sm
240° 4kts
VFR
1:00 PM PST - 4:00 PM PST
Overcast 5,000'
6sm
280° 12kts
TAF KCLM 032320Z 0400/0424 03005KT P6SM BKN060
   FM040300 24005KT P6SM VCSH OVC030
   FM040900 23004KT 5SM -RA OVC015
   FM041500 24004KT P6SM OVC015
   FM042100 28012KT P6SM OVC050
11S
No NOTAM Available
No
UNATNDD
PORT OF PORT ANGELES
338 W FIRST STREET PO BOX 1350
PORT ANGELES, WA 98362
Phone: 360-457-8527
JAMES ALTON
338 WEST FIRST STREET PO BOX 1350
PORT ANGELES, WA 98362
Phone: 360-417-3437
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 08/26

2997 ft. x 50 ft.
ASPH
Poor
NONE
LOW

--
--
--
--
  Runway 08 Runway 26
True Heading 100°280°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 48° 16' 01"N 48° 15' 55"N
Longitude 124° 19' 12"W 124° 18' 28"W
Elevation 312' 355'
Threshold Crossing Height -- 35 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- NSTD
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TURBULENCE ON E END APCH OVER WATER. DIFFICULT APCH WHEN WIND IS FROM N.
A110-2HI RIDGE ALONG N SIDE OF RWY.
A110-3DEER ON & INVOF ARPT SEP-MAR.
A110-4BRUSH, BLDGS, FENCES IN PRIMARY SFC.
A110-5TALL TREES IN TRANSITION AREAS BOTH SIDE OF RWY.
A110-7FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A110-8BATHROOM LOCK COMBINATION IS 2608.
A33-08/26_CONDWDSPR ALLIGATOR AND BLOCK CRACKING.
A43-26NSTD 2-BOX VASI LEFT SIDE NGTS ONLY.
A57-08RY 08 APCH SLOPE 50:1 FROM DSPLCD THLD.
A58-0839 FT TREES 125 FT L & R OF CNTRLN 0 FT FM THR.
A58-26RWY 26, CLIFF, 47 FT R AND 71 FT L FM RWY END.
A75-TPILOTS BRING OWN ROPES.
E111ESTABLISHED PRIOR TO 15 MAY 1959.
SEKIU (IATA: 11S) is a public airport located in SEKIU, WA, US.
