iFlightPlanner



...

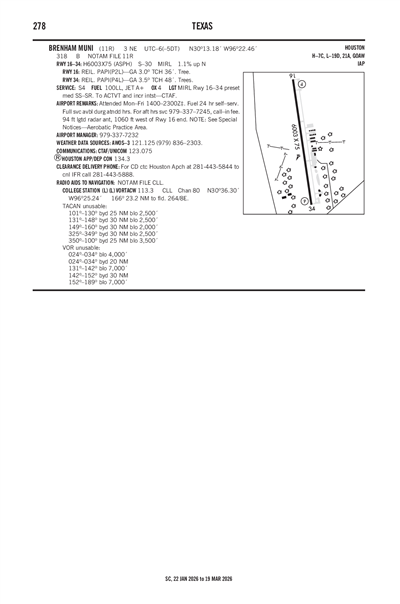

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

11R
BRENHAM MUNI
PublicPUB

3 miles NE of BRENHAM, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 13' 11"N 96° 22' 28"W
318' MSL
1318' MSL
06E
JET A, 100LL
MONTGOMERY COUNTY (CXO)
HOUSTON
HOUSTON (ZHU)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

11R FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

AWOS-3

AWOS-3
979-836-2303
 121.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
11R
Domestic
1/12/250837Z !11R 01/006 11R OBST TOWER LGT (ASR 1039799) 300931.70N0962900.90W (6.8NM WSW 11R) 838.9FT (482.0FT AGL) U/S 2501120837-2504120500
1/7/252330Z !11R 01/004 11R OBST TOWER LGT (ASR 1050612) 302126.10N0963027.70W (10.7NM NW 11R) 567.3FT (327.1FT AGL) U/S 2501072330-2504070500
1/6/250020Z !11R 01/002 11R OBST TOWER LGT (ASR 1289141) 301848.70N0961635.30W (7.6NM NE 11R) 606.6FT (290.7FT AGL) U/S 2501060020-2505060020
1/1/251430Z !11R 01/001 11R OBST TOWER LGT (ASR 1018621) 301119.10N0963408.70W (10.4NM W 11R) 739.8FT (294.0FT AGL) U/S 2501011430-2504010500
12/30/242240Z !11R 12/018 11R OBST TOWER LGT (ASR 1049313) 300743.10N0962345.10W (5.5NM SSW 11R) 769.0FT (409.1FT AGL) U/S 2412302240-2504292240
12/26/240733Z !11R 12/015 11R OBST TOWER LGT (ASR 1217791) 295816.10N0961520.20W (16.0NM SSE 11R) 569.2FT (325.1FT AGL) U/S 2412260733-2503260500
12/25/241859Z !11R 12/014 11R OBST TOWER LGT (ASR 1284041) 302416.80N0962514.40W (11.3NM NNW 11R) 603.7FT (290.0FT AGL) U/S 2412251859-2504241859
12/19/241026Z !11R 12/010 11R OBST TOWER LGT (ASR 1039798) 300835.40N0961950.40W (5.1NM SSE 11R) 743.8FT (384.8FT AGL) U/S 2412191026-2503190500
12/18/241753Z !11R 12/009 11R OBST TOWER LGT (ASR 1215776) 300132.90N0960745.40W (17.2NM SE 11R) 508.2FT (325.1FT AGL) U/S 2412181753-2503190500
No
MON - FRI 0800-1700
CITY OF BRENHAM
PO BOX 1059
BRENHAM, TX 77834
Phone: 979-337-7232
JIM HALLEY
3001 AVIATION WAY
BRENHAM, TX 77833
Phone: 979-337-7232
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
11R
--
ACTVT MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
None
Charter Service
Aircraft Rental

Runway 16/34

6003 ft. x 75 ft.
ASPH
Fair
NONE
MED

30,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 171°351°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 30° 13' 40"N 30° 12' 41"N
Longitude 96° 22' 33"W 96° 22' 23"W
Elevation 318' 250'
Threshold Crossing Height 36 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
A110-294 FT LGTD RADAR ANT, 1060 FT WEST OF RWY 16 END.
BRENHAM MUNI (IATA: 11R) is a public airport located in BRENHAM, TX.
