iFlightPlanner



...

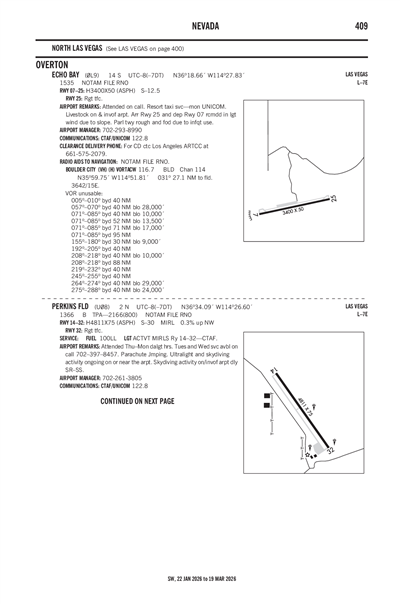

ECHO BAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

0L9
Local 0L9
ECHO BAY
PublicPUB

14 miles S of OVERTON, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 18' 40"N 114° 27' 50"W
Elevation
1535' MSL
Pattern Alt
2535' MSL
Mag Variation
11°E
Declination
14°E
Fuel
None Listed
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KLSV (28nm) VFR
6:55 PM PST
Clear
10sm
68°F
23°F
29.99"Hg
080° 3kts
AO2 SLP145 T02001051 53004 $
METAR KLSV 040255Z AUTO 08003KT 10SM CLR 20/M05 A2999 RMK AO2 SLP145 T02001051 53004 $
+ Add Your Business

0L9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8
RESORT TAXI SVC - MON UNICOM.

FAA A/FD Pages

Terminal Area Forecast

KLSV (28nm)
Tue, 3/3 3:00 PM PST
Tue, 3/3 3:00 PM PST - Wed, 3/4 9:00 PM PST
VFR
3:00 PM PST - 5:00 PM PST
Sky Clear
6sm
29.88"Hg
040° 10kts
VFR
Becoming 5:00 PM PST - 9:00 PM PST
Sky Clear
6sm
29.97"Hg
VRB° 6kts
TAF KLSV 032300Z 0323/0505 04010KT 9999 SKC QNH2989INS
   BECMG 0401/0402 VRB06KT 9999 SKC QNH2998INS TX24/0422Z TN09/0414Z
0L9
No NOTAM Available
No
ON CALL
LAKE MEAD NATL REC AREA
NATIONAL PARK SERVICE, INTER REG 8 601 NEVADA HIGHWAY
BOULDER, NV 89005
Phone: 702-293-8990
LAKE MEAD NATL REC AREA
NATIONAL PARK SERVICE, INTER REG 8 601 NEVADA HIGHWAY
BOULDER, NV 89005
Phone: 702-293-8990
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
--
N/A
N/A
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance
Pilot Instruction

Runway 07/25

3400 ft. x 50 ft.
ASPH
Fair
NONE


12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 79°259°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 36° 18' 36"N 36° 18' 43"N
Longitude 114° 28' 10"W 114° 27' 30"W
Elevation 1,535' 1,535'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1LIVESTOCK ON & INVOF ARPT.
A110-3PARL TWY ROUGH AND FOD DUE TO INFQT USE.
A110-4FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-8RESORT TAXI SVC - MON UNICOM.
A16EMERG - 702-293-8932.
A30-07/25ARR RWY 25 & DEP RWY 7 RCMDD IN LGT WIND DUE TO SLP.
ECHO BAY (IATA: 0L9) is a public airport located in OVERTON, NV, US.
