0A9
ELIZABETHTON MUNI
PublicPUB

3 miles NE of ELIZABETHTON, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 22' 18"N 82° 10' 22"W
1592' MSL
2592' MSL
06W
JET A, 100LL
NASHVILLE (BNA)
CINCINNATI
ATLANTA (ZTL)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

0A9 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
423-543-1801
 135.675

FAA A/FD Pages

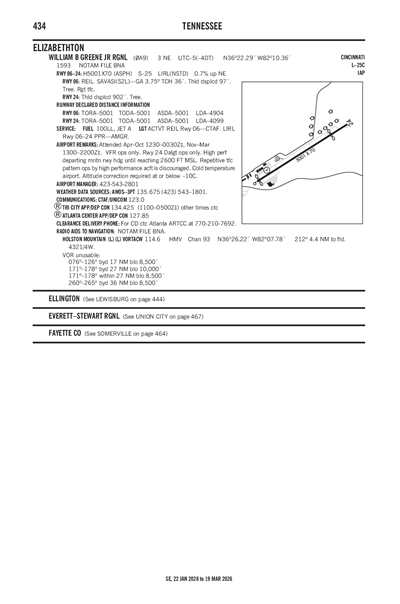

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
0A9
Domestic
1/15/250650Z !BNA 01/466 0A9 OBST TOWER LGT (ASR 1221367) 362033.10N0820149.50W (7.1NM ESE 0A9) 2500.7FT (259.8FT AGL) U/S 2501150650-2501300550
1/15/250559Z !BNA 01/464 0A9 OBST TOWER LGT (ASR 1223169) 361225.90N0820458.70W (10.7NM SSE 0A9) 3235.9FT (259.8FT AGL) U/S 2501150559-2501300459
1/15/250544Z !BNA 01/463 0A9 OBST TOWER LGT (ASR 1217724) 361311.00N0821007.20W (9.1NM S 0A9) 3013.8FT (250.0FT AGL) U/S 2501150544-2501300444
12/31/241324Z !BNA 12/597 0A9 OBST TOWER LGT (ASR 1225306) 362658.20N0820628.70W (5.7NM NNE 0A9) 4631.9FT (419.9FT AGL) U/S 2412311324-2506302359
12/13/241319Z !BNA 12/253 0A9 OBST TOWER LGT (ASN 2017-ASO-21787-OE) 362636N0820712W (5.1NM NNE 0A9) 4430FT (180FT AGL) U/S 2412131319-2503212359
10/8/241718Z !BNA 10/181 0A9 RWY 06 RWY END ID LGT U/S 2410081718-2504082111EST
8/8/241459Z !BNA 08/164 0A9 RWY 06 VASI UNUSABLE 2408081459-2502112111EST
No
APR-OCT 0730-1930
NOV-MAR 0800-1700
CITY OF ELIZABETHTON
136 SOUTH SYCAMORE STREET
ELIZABETHTON, TN 37643
Phone: (423) 547-6200
DAN COGAN
415 HIGHWAY 91
ELIZABETHTON, TN 37643
Phone: 423-543-2801
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT REIL RWY 06 - CTAF. LIRL RWY 6/24 PPR - AMGR.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 06/24

5001 ft. x 70 ft.
ASPH
Excellent
NONE
LOW

25,000lbs
--
--
--
  Runway 06 Runway 24
True Heading 58°238°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 22' 04"N 36° 22' 31"N
Longitude 82° 10' 48"W 82° 09' 56"W
Elevation 1,556' 1,592'
Threshold Crossing Height 36 ft. AGL --
Visual Glide Path Angle 3.75° --
Visual Slope Indicator S2L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-5COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -13C.
A110-6FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
ELIZABETHTON MUNI (IATA: 0A9) is a public airport located in ELIZABETHTON, TN.
