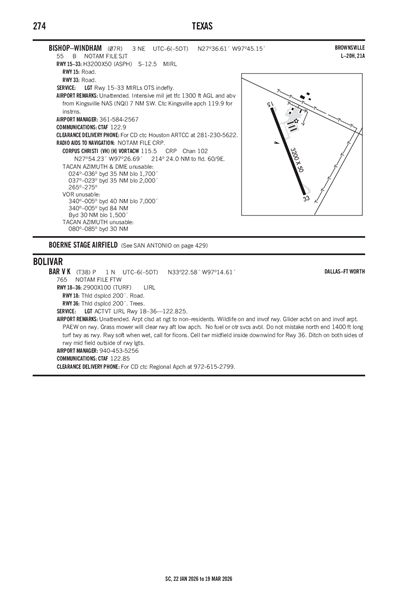

BISHOP-WINDHAM - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

07R
Local 07R
BISHOP-WINDHAM
PublicPUB

3 miles NE of BISHOP, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 36' 37"N 97° 45' 09"W
Elevation
55' MSL
Pattern Alt
1055' MSL
Mag Variation
3°E
Declination
7°E
Fuel
None Listed
FSS
SAN ANGELO (SJT)
Sectional
BROWNSVILLE
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KNQI (7nm) MVFR
9:56 PM CST
Broken 1,700'
Scattered 1,200'
10sm
74°F
70°F
29.99"Hg
150° 13kts
Gusts 20kts
AO2 SLP152 T02330211 $
METAR KNQI 040356Z 15013G20KT 10SM SCT012 BKN017 23/21 A2999 RMK AO2 SLP152 T02330211 $
+ Add Your Business

07R FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KNQI (7nm)
Tue, 3/3 5:21 PM CST
Tue, 3/3 5:00 PM CST - Wed, 3/4 5:00 PM CST
VFR
5:00 PM CST - 7:00 PM CST
Scattered 2,000'
6sm
29.91"Hg
140° 19kts
Gusts 27kts
Light Turbulence: up to 5,000'
VFR
7:00 PM CST - 9:00 PM CST
Scattered 1,500'
6sm
29.91"Hg
150° 15kts
Gusts 23kts
Up to 5,000'
MVFR
Becoming 9:00 PM CST - 3:00 AM CST
Broken 1,200'
Scattered 600'
6sm
29.97"Hg
150° 12kts
IFR
3:00 AM CST - 8:00 AM CST
Mist
Overcast 1,500'
Broken 600'
4.97sm
29.94"Hg
140° 9kts
LIFR
Temporary 3:00 AM CST - 8:00 AM CST
Light Rain and Drizzle and Mist
Overcast 2,000'
Scattered 600'
0.75sm
130° 5kts
MVFR
Becoming 8:00 AM CST - 5:00 PM CST
Mist
Broken 4,000'
Broken 2,000'
6sm
29.91"Hg
140° 20kts
Gusts 35kts
Moderate, Clear Air, Occasional: up to 5,000'
TAF KNQI 0323/0423 14019G27KT 9999 SCT020 510005 QNH2990INS
   FM040100 15015G23KT 9999 SCT015 500000 QNH2992INS
   BECMG 0403/0405 15012KT SCT006 BKN012 WS012/19030KT QNH2996INS
   FM040900 14009KT 8000 BR BKN006 OVC015 WS012/19040KT QNH2994INS
   TEMPO 0409/0414 13005KT 1200 -RADZ BR SCT006 OVC020
   BECMG 0414/0416 14020G35KT 9999 BKN020 BKN040 520005 QNH2990INS AUTOMATED SENSOR METWATCH 0406 TIL 0413 TX31/0420Z TN20/0412Z FN20061
07R
No NOTAM Available
No
UNATNDD
CITY OF BISHOP
PO BOX 356
BISHOP, TX 78343
Phone: 361-584-2567
TEM MILLER
PO BOX 356
BISHOP, TX 78343
Phone: 361-584-2567
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
Sunset to Sunrise
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

3200 ft. x 50 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 152°332°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 27° 36' 51"N 27° 36' 23"N
Longitude 97° 45' 17"W 97° 45' 01"W
Elevation 53' 51'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1INTENSIVE MIL JET TFC 1300 FT AGL & ABV FROM KINGSVILLE NAS (NQI) 7 NM SW. CTC KINGSVILLE APCH 119.9 FOR INSTRNS.
A110-2FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
A14MAYOR/AMGR.
A16EXT 106
A40-15/33MIRLS OTS INDEFLY.
BISHOP-WINDHAM (IATA: 07R) is a public airport located in BISHOP, TX, US.
