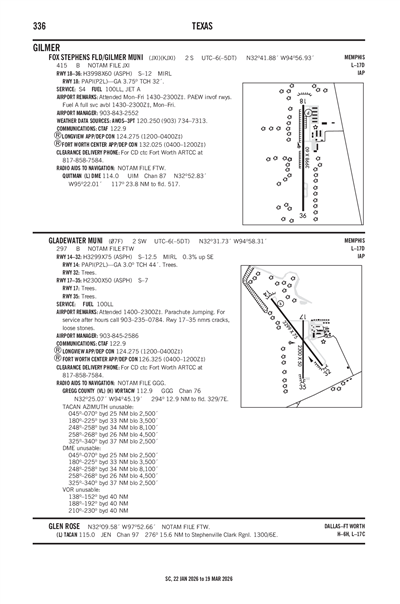

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

07F
GLADEWATER MUNI
PublicPUB

2 miles SW of GLADEWATER, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 31' 44"N 94° 58' 18"W
296' MSL
1296' MSL
03E
100LL
FORT WORTH (FTW)
MEMPHIS
FORT WORTH (ZFW)
10/31/24-11/28/24
KGGG (15nm) LIFR
5:53 AM CST
Overcast 300'
10sm
61°F
60°F
29.98"Hg
310° 11kts
AO2 SLP148 60013 7//// T01610156 10206 20161 53010
KGGG 091153Z AUTO 31011KT 10SM OVC003 16/16 A2998 RMK AO2 SLP148 60013 7//// T01610156 10206 20161 53010
Add Your Business

07F FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGGG (15nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
LIFR
6:00 AM CST - 9:00 AM CST
Showers in vicinity
Overcast 300'
6sm
320° 10kts
IFR
9:00 AM CST - 12:00 PM CST
Showers in vicinity
Overcast 500'
6sm
320° 5kts
MVFR
12:00 PM CST - 6:00 PM CST
Overcast 2,500'
Broken 1,500'
6sm
330° 5kts
MVFR
6:00 PM CST - 10:00 PM CST
Overcast 3,000'
Broken 2,000'
6sm
VRB° 3kts
MVFR
10:00 PM CST - 6:00 AM CST
Overcast 1,000'
6sm
VRB° 3kts
KGGG 091120Z 0912/1012 32010KT P6SM VCSH OVC003
   FM091500 32005KT P6SM VCSH OVC005
   FM091800 33005KT P6SM BKN015 OVC025
   FM100000 VRB03KT P6SM BKN020 OVC030
   FM100400 VRB03KT P6SM OVC010
07F
Domestic
11/5/241037Z !FTW 11/171 07F OBST TOWER LGT (ASR 1055375) 322015.00N0950242.00W (12.0NM SSW 07F) 1040.7FT (463.6FT AGL) U/S 2411051037-2412052359
11/5/241010Z !FTW 11/169 07F OBST TOWER LGT (ASR 1059061) 322623.10N0950135.50W (6.0NM SSW 07F) 669.6FT (279.9FT AGL) U/S 2411051010-2503051010
11/3/241933Z !FTW 11/114 07F OBST TOWER LGT (ASR 1033313) 322757.00N0950852.00W (9.7NM WSW 07F) 887.1FT (370.1FT AGL) U/S 2411031933-2503031933
10/31/240040Z !FTW 10/750 07F OBST TOWER LGT (ASR 1060136) 323410.00N0944832.00W (8.7NM ENE 07F) 661.7FT (230.0FT AGL) U/S 2410310040-2411142340
10/23/241353Z !FTW 10/544 07F OBST TOWER LGT (ASR 1058385) 322310.00N0950644.00W (11.2NM SW 07F) 990.8FT (498.7FT AGL) U/S 2410231353-2501232359
10/20/241653Z !FTW 10/468 07F OBST TOWER LGT (ASR 1048170) 322204.50N0950245.10W (10.3NM SSW 07F) 1059.1FT (435.0FT AGL) U/S 2410201653-2501190400
9/25/241549Z !FTW 09/664 07F OBST TOWER LGT (ASR 1233021) 323517.50N0945854.20W (3.6NM N 07F) 969.8FT (520.0FT AGL) U/S 2409251549-2412312359
FDC
7/11/232016Z !FDC 3/4551 07F ODP GLADEWATER MUNI, GLADEWATER, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS RWY 35, STANDARD WITH MINIMUM CLIMB OF 280 FET PER NM TO 1300 OR 1100-3 FOR CLIMB IN VISUAL CONDITIONS.
ALL OTHER DATA REMAINS AS PUBLISHED. 2307112016-2507112016EST
No
0800-1700
FOR SVC AFT HRS CALL 903-295-8860.
CITY OF GLADEWATER
PO BOX 1725
GLADEWATER, TX 75647
Phone: 903-845-2196
CHARLIE SMITH
PO BOX 1725
GLADEWATER, TX 75647
Phone: 903-845-2586
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 14/32

3299 ft. x 75 ft.
ASPH
Poor
NONE
MED

12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 143°323°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 31' 60"N 32° 31' 34"N
Longitude 94° 58' 31"W 94° 58' 08"W
Elevation 285' 296'
Threshold Crossing Height 44 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

2300 ft. x 50 ft.
ASPH
Good
NONE


7,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 31' 51"N 32° 31' 29"N
Longitude 94° 58' 17"W 94° 58' 16"W
Elevation 292' 295'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
GLADEWATER MUNI (IATA: 07F) is a public airport located in GLADEWATER, TX.
