06U
JACKPOT/HAYDEN FLD
Public
PUB
0 miles E of JACKPOT, NV
View on
Map
Status
Operational
Coordinates
41° 58' 33"N
114° 39' 29"W
Elevation
5224' MSL
Pattern Alt
6224' MSL
Mag Variation
16E
Fuel
None Listed
FSS
RENO (RNO)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
4/17/25-5/15/25
KTWF (31nm)
VFR
7:53 AM MST
RAW
Overcast 11,000'
Viz
10sm
Temp
49°F
Dew
33°F
Pres
30.10"Hg
Wind
170° 6kts
RMK
AO2 SLP175 T00940006 51017 $
METAR KTWF 041453Z 17006KT 10SM OVC110 09/01 A3010 RMK AO2 SLP175 T00940006 51017 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
06U FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
AWOS-AV
AWOS-AV
775-755-2297
120.0

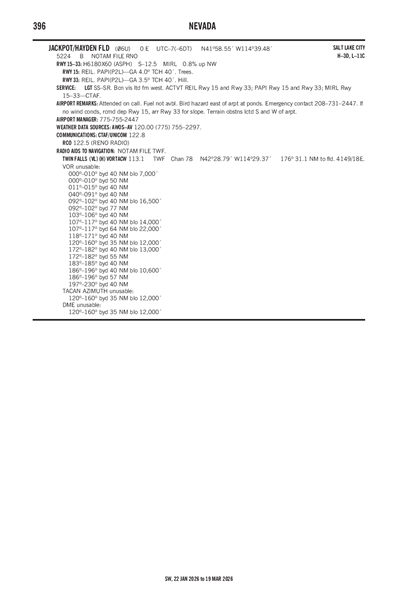

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KTWF (31nm)
RAW
Reported
Tue, 11/4 4:35 AM MST
Valid
Tue, 11/4 5:00 AM MST - Wed, 11/5 5:00 AM MST
VFR
1:00 AM MST - 5:00 AM MST
Overcast 20,000'
Viz
6sm
Wind
170° 11kts
VFR
7:00 PM MST - 1:00 AM MST
Overcast 15,000'
Viz
6sm
Wind
120° 9kts
VFR
3:00 PM MST - 7:00 PM MST
Overcast 12,000'
Scattered 5,000'
Viz
6sm
Wind
VRB° 6kts
VFR
Temporary
11:00 AM MST - 3:00 PM MST
Light Rain
Overcast 6,000'
Scattered 4,000'
Viz
N/A
Wind
VRB° 6kts
VFR
5:00 AM MST - 3:00 PM MST
Overcast 9,000'
Scattered 6,000'
Viz
6sm
Wind
240° 9kts
TAF KTWF 041135Z 0412/0512 24009KT P6SM SCT060 OVC090
TEMPO 0418/0422 VRB06KT -RA SCT040 OVC060
FM042200 VRB06KT P6SM SCT050 OVC120
FM050200 12009KT P6SM OVC150
FM050800 17011KT P6SM OVC200 WS020/20040KT
06U
Effective
Expires
Category
NOTAM
Domestic
11/4/25
0400Z
11/4/25
1100Z
!RNO 10/184 06U COM REMOTE COM OUTLET 122.5 U/S 2511040400-2511041100
ATC Tower
No
Attendance
ON CALL
Owner
ELKO COUNTY
540 COURT STREET, SUITE 104
ELKO, NV 89801
Phone: 775-738-6816
Manager
SHAWN BURT
AIRPORT MANAGER, PO BOX 337
JACKPOT, NV 89825
Phone: 775-755-2447
FSS
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
NOTAM
RNO
Light Schedule
--
Lights
ACTVT REIL RWY 15 & 33; PAPI RWY 15 & 33; MIRL RWY 15/33 - CTAF.
SS-SR. BCN VIS LTD FM WEST.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Air Ambulance
Runway 15/33
Dimensions
6180 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 15
Runway 33
True Heading
163°
343°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
41° 59' 02"N
41° 58' 04"N
Longitude
114° 39' 41"W
114° 39' 17"W
Elevation
5,224'
5,175'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
4°
3.5°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
Yes
Yes
A110-1
TERRAIN OBSTNS LCTD S & W OF ARPT.
A110-2
BIRD HAZARD EAST OF ARPT AT PONDS.
A110-4
FUEL NOT AVBL.
A110-5
EMERGENCY CONTACT 208-731-2447
A110-6
IN NO WIND CONDS, RCMD DEP RWY 15, ARR RWY 33 FOR SLOPE.
JACKPOT/HAYDEN FLD (IATA: 06U) is a public airport located in JACKPOT, NV.
