06FA
WILLIAM P GWINN
PrivatePVT

24 miles S of JUPITER, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 54' 29"N 80° 19' 42"W
28' MSL
1028' MSL
05W
None Listed
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
4/17/25-5/15/25
KF45 (7nm) VFR
2:35 PM EST
Few 4,600'
10sm
77°F
57°F
30.17"Hg
060° 10kts
Gusts 16kts
AO2
METAR KF45 041935Z AUTO 06010G16KT 10SM FEW046 25/14 A3017 RMK AO2
+ Add Your Business

06FA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Ground

GND/P
 121.65

Tower

LCL/P
 120.4

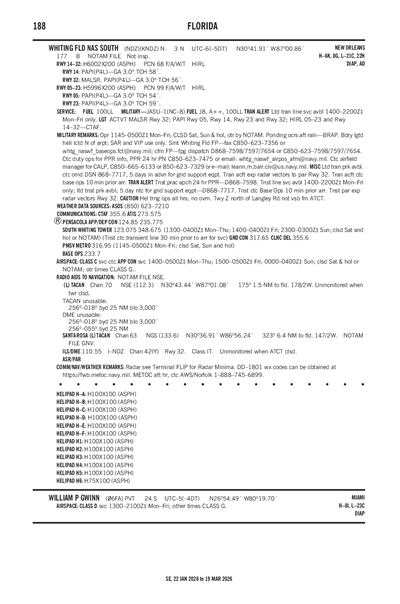

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

  • No Documents

Terminal Area Forecast

KSUA (17nm)
Tue, 11/4 12:39 PM EST
Tue, 11/4 1:00 PM EST - Wed, 11/5 1:00 PM EST
VFR
10:00 AM EST - 1:00 PM EST
Scattered 4,000'
6sm
080° 7kts
VFR
8:00 PM EST - 10:00 AM EST
Broken 4,000'
6sm
070° 9kts
VFR
1:00 PM EST - 8:00 PM EST
Broken 25,000'
Scattered 5,000'
6sm
050° 11kts
Gusts 18kts
TAF KSUA 041739Z 0418/0518 05011G18KT P6SM SCT050 BKN250
   FM050100 07009KT P6SM BKN040
   FM051500 08007KT P6SM SCT040 AMD NOT SKED
06FA
EffectiveExpiresCategoryNOTAM
FDC
6/25/25
1117Z
!FDC 5/8669 06FA SPECIAL WILLIAM P GWINN, JUPITER, FL.
ILS OR LOC RWY 9, AMDT 1 ...
CHANGE ALL REFERENCE FROM RWY 9/27 TO 10/28. DISREGARD PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 58.0). 2506251117-2706251117EST
6/12/25
0905Z
!FDC 5/0711 06FA IAP WILLIAM P GWINN, JUPITER, FL.
ILS OR LOC RWY 9, AMDT 1...
PROCEDURE NA.
2506120905-2601191103EST
5/12/25
1558Z
!FDC 5/9233 06FA SPECIAL WILLIAM P GWINN, JUPITER, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG ...
CHANGE ALL REFERENCE FROM RWY 9/27 TO 10/28. 2505121558-2705121558EST
Yes
MON -FRI 0800-1600
ATTENDED MON-FRI EXCP HOLS.
SIKORSKY AIRCRAFT CORP
PO BOX 109610
WEST PALM BEACH, FL 33410-9610
Phone: 561-775-5452
TREVOR HARRIS
PO BOX 109610
WEST PALM BEACH, FL 33410-9610
Phone: 561-775-5452
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
FDC
--
ATC CTL
ATC-CTL
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 09/27

7003 ft. x 150 ft.

ASPH
NONE
HIGH
49 /F/A/X/T
--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 26° 54' 29"N 26° 54' 29"N
Longitude 80° 20' 21"W 80° 19' 04"W
Elevation 28' 28'
Threshold Crossing Height 58 ft. AGL --
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1OPEN ONLY TO CIVIL & MIL ACFT HAVING BUSINESS WITH UNITED TECHNOLOGIES CORPORATION OR ITS DIVISIONS. PPR CTC ATCT C561-775-5450.
A110-4ARPT BCN OPERS ONLY WHEN ARPT IS ATTENDED.
A110-5FUEL: NOT FOR PUBLIC SALE. A, J5 J8 FLUID - SP.
A110-6JASU: (4 HOBART STARTING UNITS 28.5V/750 AMPS.)
A110-7MISC: COPTER OPR. VERT TKOF UP TO 3000'. POSSIBLE VERT JET TURBULENCE WITHIN 2 NM OF APCH END RWY 09. CLASS D AIRSPACE EFF 1200-2300Z++ MON-FRI, OT CLASS G.
A110-8BIRDS AND WILDLIFE ON AND INVOF ARPT.
A110-9WHEN ATCT CLSD, FOR CD CTC PALM BEACH APCH AT 561-275-1430
WILLIAM P GWINN (IATA: 06FA) is a private airport located in JUPITER, FL.
