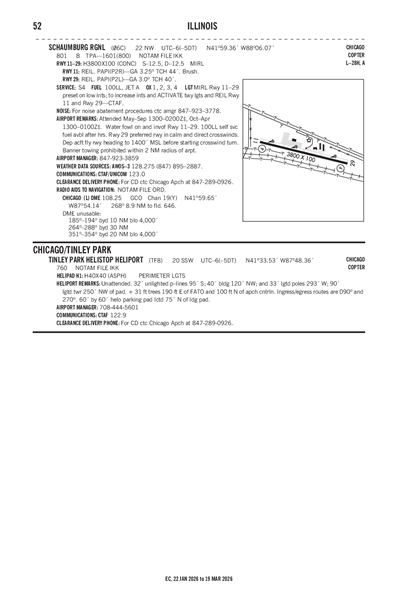

SCHAUMBURG RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

06C
Local 06C
SCHAUMBURG RGNL
PublicPUB

22 miles NW of CHICAGO/SCHAUMBURG, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 59' 22"N 88° 06' 04"W
Elevation
801' MSL
Pattern Alt
1601' MSL
Mag Variation
4°W
Declination
1°W
Fuel
JET A, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
K06C LIFR
3:35 AM CST
Overcast 300'
0.25sm
33°F
32°F
30.21"Hg
Calm
AO2 T00050002
METAR K06C 040935Z AUTO 00000KT 1/4SM OVC003 01/00 A3021 RMK AO2 T00050002
+ Add Your Business

06C FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 128.275
(847) 895-2887

Common

CTAF 123.0
MIRL RY 11/29 PRESET LOW INTST; TO INCR INTST & ACTVT TWY LGTS & REILS RY 11 & RY 29 - CTAF.
UNICOM 123.0

FAA A/FD Pages

Terminal Area Forecast

KORD (8nm)
Wed, 3/4 2:59 AM CST
Wed, 3/4 3:00 AM CST - Thu, 3/5 6:00 AM CST
LIFR
Temporary 3:00 AM CST - 5:00 AM CST
Mist
Overcast 200'
1sm
Calm
LIFR
3:00 AM CST - 10:00 AM CST
Mist
Overcast 400'
Scattered 200'
4sm
070° 6kts
MVFR
10:00 AM CST - 8:00 PM CST
Overcast 1,500'
Scattered 800'
6sm
090° 10kts
IFR
12:00 PM CST - 5:00 PM CST
Light Drizzle and Mist
Broken 800'
4sm
Calm
IFR
8:00 PM CST - 11:00 PM CST
Light Drizzle and Mist
Overcast 600'
Scattered 300'
3sm
040° 6kts
LIFR
11:00 PM CST - 6:00 AM CST
Light Drizzle and Mist
Overcast 400'
Scattered 200'
1sm
040° 5kts
LIFR
12:00 AM CST - 6:00 AM CST
Light Drizzle and Fog
Overcast 300'
0.5sm
Calm
TAF KORD 040859Z 0409/0512 07006KT 4SM BR SCT002 OVC004
   TEMPO 0409/0411 1SM BR OVC002
   FM041600 09010KT P6SM SCT008 OVC015
   PROB30 0418/0423 4SM -DZ BR BKN008
   FM050200 04006KT 3SM -DZ BR SCT003 OVC006
   FM050500 04005KT 1SM -DZ BR SCT002 OVC004
   PROB30 0506/0512 1/2SM -DZ FG OVC003
06C
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
1658Z
4/2/26
2359Z
!IKK 03/003 06C OBST TOWER LGT (ASR 1267333) 415956.90N0880635.50W (0.7NM NNW 06C) 951.4FT (140.1FT AGL) U/S 2603021658-2604022359
No
OCT-APR 0700-1900
MAY-SEP 0700-2000
VILLAGE OF SCHAUMBURG
101 SCHAUMBURG CT
SCHAUMBURG, IL 60193
Phone: 847-895-0007
ERIK TRYDAL
101 SCHAUMBURG COURT
SCHAUMBURG, IL 60193
Phone: 847-923-3859
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
IKK
--
MIRL RY 11/29 PRESET LOW INTST; TO INCR INTST & ACTVT TWY LGTS & REILS RY 11 & RY 29 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 11/29

3800 ft. x 100 ft.
CONC
Good
NONE
MED

12,000lbs
12,000lbs
--
--
  Runway 11 Runway 29
True Heading 105°285°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 59' 27"N 41° 59' 17"N
Longitude 88° 06' 29"W 88° 05' 40"W
Elevation 801' 801'
Threshold Crossing Height 44 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.25° 3°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2FOR NOISE ABATEMENT PROCEDURES CTC AMGR 847-923-3778.
A110-3WATER FOWL ON & INVOF RY 11/29.
A110-5RY 29 PREFERED RY IN CALM & DIRECT CROSSWINDS. DEP ACFT FLY RY HEADING TO 1400 FT MSL BEFORE STARTING CROSSWIND TURN.
A110-7BANNER TOWING PROHIBITED WITH IN 2 NM RADIUS OF ARPT.
A110-8FOR CD CTC CHICAGO APCH AT 847-289-0926.
A14ARPT ADMINISTRATOR.
A15EMAIL ADDRESS: ETRYDAL@SCHAUMBURG.COM (ALL LWR CASE)
A16EMERG CTC: 630-600-1439.
A31-11/29HAS 100 FT STWY ON EACH END.
A5-SAND COOK COUNTY.
A70-100LL100LL SELF SRVC FUEL AVAILABLE AFTER HRS.
A81-APTMIRL RY 11/29 PRESET LOW INTST; TO INCR INTST & ACTVT TWY LGTS & REILS RY 11 & RY 29 - CTAF.
SCHAUMBURG RGNL (IATA: 06C) is a public airport located in CHICAGO/SCHAUMBURG, IL, US.
