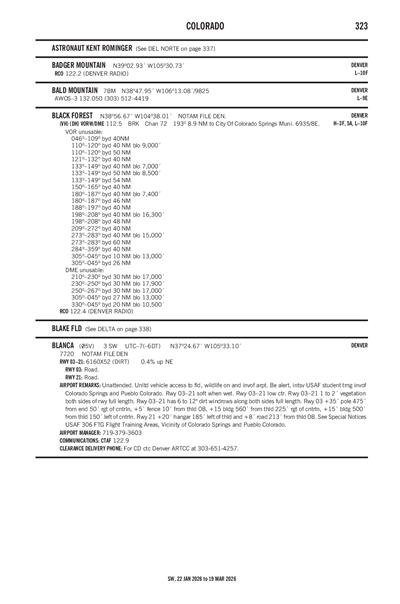

BLANCA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

05V
Local 05V
BLANCA
PublicPUB

3 miles SW of BLANCA, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 24' 40"N 105° 33' 06"W
Elevation
7720' MSL
Pattern Alt
8720' MSL
Mag Variation
8°E
Declination
11°E
Fuel
None Listed
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KALS (15nm) VFR
9:52 PM MST
Clear
10sm
28°F
13°F
30.17"Hg
140° 7kts
AO2 SLP193 T10221106
METAR KALS 040452Z AUTO 14007KT 10SM CLR M02/M11 A3017 RMK AO2 SLP193 T10221106
+ Add Your Business

05V FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KALS (15nm)
Tue, 3/3 4:31 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Scattered 7,000'
6sm
280° 10kts
Gusts 25kts
VFR
7:00 PM MST - 12:00 AM MST
Scattered 20,000'
6sm
050° 9kts
VFR
12:00 AM MST - 5:00 PM MST
Sky Clear
6sm
VRB° 5kts
TAF KALS 032331Z 0400/0424 28010G25KT P6SM SCT070
   FM040200 05009KT P6SM SCT200
   FM040700 VRB05KT P6SM SKC
05V
No NOTAM Available
No
UNATNDD
TOWN OF BLANCA
BOX 365
BLANCA, CO 81123
Phone: 719-379-3461
MYRRL SMITH
BOX 6
BLANCA, CO 81123
Phone: 719-379-3603
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 03/21

6160 ft. x 52 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 41°221°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 37° 24' 17"N 37° 25' 03"N
Longitude 105° 33' 35"W 105° 32' 44"W
Elevation 7,696' 7,720'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1UNLIMITED VEHICLE ACCESS TO FIELD; WILDLIFE ON & INVOF ARPT.
A110-2RY 21 HAS +15 FT SPRINKLER WITHIN 200 FT OF THLD; INTERMITTENTLY.
A110-3RY 03 +35 FT POLE 475 FT FM RY END 50 FT R OF CNTRLN; +5 FT FENCE 10 FT FM THLD 0B; +15 FT BLDG 560 FT FM THLD 225 FT R OF CNTRLN; +15 FT BLDG 500 FT FM THLD 150 FT L OF CNTRLN.
A110-5RY 03/21 SOFT WHEN WET.
A110-6RY 21 +20 FT HANGAR 185 FT L OF THLD AND +8 FT ROAD 213 FT FM THLD 0B.
A110-7RY 03/21 HAS 6 TO 12 IN DIRT WINDROWS ALONG BOTH SIDES FULL LENGTH.
A110-8BE ALERT; INTENSIVE USAF STUDENT TRAINING IN VICINITY OF COLORADO SPRINGS & PUEBLO COLORADO.
A110-9FOR CD CTC DENVER ARTCC AT 303-651-4257.
A33-03/21_SURF1 TO 2 FT VEGETATION BOTH SIDES OF RY FULL LENGTH.
E111EXISTED PRIOR TO 1959.
BLANCA (IATA: 05V) is a public airport located in BLANCA, CO, US.
