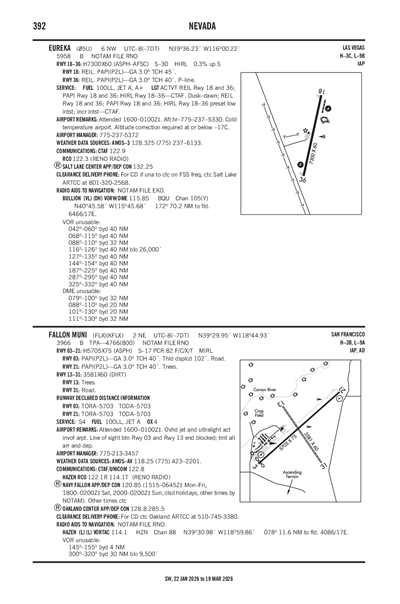

EUREKA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

05U
Local 05U
EUREKA
PublicPUB

6 miles NW of EUREKA, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 36' 13"N 116° 00' 13"W
Elevation
5958' MSL
Pattern Alt
6958' MSL
Mag Variation
12°E
Declination
13°E
Fuel
JET A, JET A (FSII), 100LL
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KP68 VFR
7:53 PM PST
No Clouds
N/A
36°F
28°F
30.17"Hg
120° 4kts
AO1 SLP206 T00221022
METAR KP68 040353Z AUTO 12004KT 02/M02 A3017 RMK AO1 SLP206 T00221022
+ Add Your Business

05U FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 128.325
(775) 237-6133

Common

CTAF 122.9
ACTVT REIL RWY 18 & 36; PAPI RWY 18 & 36; HIRL RWY 18/36 - CTAF. DUSK-DAWN; REIL RWY 18 & 36; PAPI RWY 18 & 36; HIRL RWY 18/36 PRESET LOW INTST; INCR INTST - CTAF.

Center

Center 132.25
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON FREQS 132.25/338.35 (BATTLE MOUNTAIN RCAG).

Flight Service

Flight Service 122.3
(RNO), COMMUNICATIONS PRVDD BY RENO RADIO ON FREQ 122.3 (EUREKA RCO).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KELY (57nm)
Tue, 3/3 3:20 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 6:00 PM PST
Sky Clear
6sm
010° 5kts
VFR
6:00 PM PST - 11:00 AM PST
Sky Clear
6sm
180° 9kts
VFR
11:00 AM PST - 4:00 PM PST
Scattered 20,000'
6sm
200° 13kts
Gusts 23kts
TAF KELY 032320Z 0400/0424 01005KT P6SM SKC
   FM040200 18009KT P6SM SKC
   FM041900 20013G23KT P6SM SCT200
05U
EffectiveExpiresCategoryNOTAM
Domestic
12/15/25
1420Z
Runway!RNO 12/099 05U RWY 18 RWY END ID LGT U/S 2512151420-2606152111EST
No
0800-1700
AFT HR - 775-237-5330.
COUNTY OF EUREKA
COUNTY COURT HOUSE BOX 677
EUREKA, NV 89316
Phone: 775-237-5372
JEB ROWLEY
701 S MAIN STREET PO BOX 714
EUREKA, NV 89316
Phone: 775-237-5372
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
ACTVT REIL RWY 18 & 36; PAPI RWY 18 & 36; HIRL RWY 18/36 - CTAF. DUSK-DAWN; REIL RWY 18 & 36; PAPI RWY 18 & 36; HIRL RWY 18/36 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Air Ambulance

Runway 18/36

7300 ft. x 60 ft.
ASPH
Excellent
AFSC
HIGH

30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 191°11°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 36' 49"N 39° 35' 38"N
Longitude 116° 00' 04"W 116° 00' 22"W
Elevation 5,940' 5,958'
Threshold Crossing Height 45 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A11COUNTY OF EUREKA
A110*PPAY PHONE AVAILABLE.
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-2COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -17C.
A17-M1AFT HR - 775-237-5330.
A52-18UNLGTD PLINES & POLES.
A57-18UNLGTD PLINES & POLES PENETRATE 20 - 1 APCH SFC.
A81-APTACTVT REIL RWY 18 & 36; PAPI RWY 18 & 36; HIRL RWY 18/36 - CTAF. DUSK-DAWN; REIL RWY 18 & 36; PAPI RWY 18 & 36; HIRL RWY 18/36 PRESET LOW INTST; INCR INTST - CTAF.
EUREKA (IATA: 05U) is a public airport located in EUREKA, NV, US.
