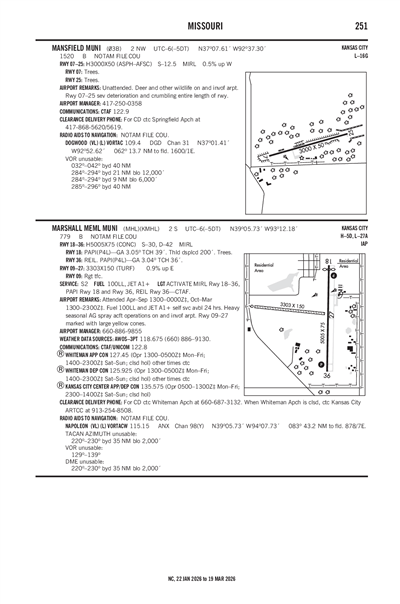

MANSFIELD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

03B
Local 03B
MANSFIELD MUNI
PublicPUB

2 miles NW of MANSFIELD, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 07' 36"N 92° 37' 18"W
Elevation
1520' MSL
Pattern Alt
2520' MSL
Mag Variation
0°
Declination
3°E
Fuel
None Listed
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KLBO (31nm) VFR
4:55 AM CST
Overcast 7,500'
Scattered 6,000'
10sm
52°F
48°F
30.04"Hg
Calm
AO2
METAR KLBO 041055Z AUTO 00000KT 10SM SCT060 OVC075 11/09 A3004 RMK AO2
+ Add Your Business

03B FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSGF (37nm)
Wed, 3/4 2:25 AM CST
Wed, 3/4 2:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
2:00 AM CST - 3:00 AM CST
Overcast 10,000'
Broken 3,500'
6sm
VRB° 5kts
MVFR
3:00 AM CST - 8:00 AM CST
Overcast 10,000'
Broken 2,500'
6sm
VRB° 5kts
IFR
Temporary 8:00 AM CST - 12:00 PM CST
Thunderstorm and Rain
Overcast 2,500'
Broken 600'
2sm
Calm
IFR
8:00 AM CST - 12:00 PM CST
Overcast 700'
6sm
VRB° 5kts
MVFR
12:00 PM CST - 6:00 PM CST
Thunderstorm and Rain
Overcast 2,500'
Broken 1,000'
3sm
090° 10kts
IFR
6:00 PM CST - 12:00 AM CST
Showers and Rain
Broken 600'
3sm
VRB° 5kts
IFR
6:00 PM CST - 12:00 AM CST
Thunderstorm and Rain
Overcast 2,500'
Broken 700'
2sm
Calm
TAF KSGF 040825Z 0408/0506 VRB05KT P6SM BKN035 OVC100
   FM040900 VRB05KT P6SM BKN025 OVC100
   FM041400 VRB05KT P6SM OVC007
   TEMPO 0414/0418 2SM TSRA BKN006 OVC025CB
   FM041800 09010KT 3SM TSRA BKN010 OVC025CB
   FM050000 VRB05KT 3SM SHRA BKN006
   PROB30 0500/0506 2SM TSRA BKN007 OVC025CB
03B
EffectiveExpiresCategoryNOTAM
Domestic
2/13/26
0029Z
5/31/26
2359Z
!COU 02/216 03B OBST TOWER LGT (ASR 1234503) 370630.40N0923558.20W (1.5NM SE 03B) 1801.8FT (254.9FT AGL) U/S 2602130029-2605312359
No
UNATNDD
MANSFIELD, CITY OF
122 N. BUS. 60 P.O. BOX 467
MANSFIELD, MO 65704
Phone: 417-924-3719
RODDY CLARK
1588 HWY F
MANSFIELD, MO 65704
Phone: 417-250-0358
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

3000 ft. x 50 ft.
ASPH
Failed
AFSC
MED

12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 78°258°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 37° 07' 33"N 37° 07' 40"N
Longitude 92° 37' 36"W 92° 36' 60"W
Elevation 1,520' 1,505'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER & OTHER WILDLIFE ON & INVOF ARPT.
A110-2FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.
A14ARPT BOARD CHAIRMAN.
A33-07/25_CONDSEV DETERIORATION AND CRUMBLING ENTIRE LENGTH OF RWY.
A58-25+2-7 FT BRUSH, SMALL TREES 0-50 FT FM THLD 55-105 FT L & R; +1-5 FT GND 0-200 FT FM THLD LEFT & RIGHT.
A75-HTIEDOWN ROPES NOT PROVIDED.
MANSFIELD MUNI (IATA: 03B) is a public airport located in MANSFIELD, MO, US.
